Models Comparison

Data/ModelINTERMEDIATE 180 Type R/S-MRMINTERMEDIATE 200 Type R/S-MRMINTERMEDIATE 200 Type R/S SMSLARGE CAPACITY 270 Type R/SLARGE CAPACITY 300 Type R/SLARGE CAPACITY 300 Type F/S
Batch Capacity (tons wet wheat)18 (24m³)20 (27m³)20 (27m³)27 (38.5m³)30 (40m³)30 (40m³)
Loading Time (minutes)141520182020
Unloading Time (minutes)121318161818
PTO Drive (tractor min.size of HP)808070809090
PTO Electric Drive (mains supply of AMPS)10010070100100100
Batch Circulation (per hour)444333
Available as PTO or Full Electric DriveYesYesYesYesYesYes
Burner TypeDiesel, Automatic Triple StageDiesel, Automatic Triple StageDiesel, Automatic Twin StageDiesel, Automatic Triple StageDiesel, Automatic Triple StageDiesel, Automatic Triple Stage
Fuel Tank Capacity (litres)700700700700700700
Height In Operation (mm - including Aspirator)690072007160823082008470
Height In Transport (mm)45504550419048304960N/A
Width In Transport (mm)320032003000334033403340
Dimensions Diagram (click to view)ViewViewViewViewViewView
Weight (kgs)390050604000480058005200
Comrehensive 3 Year Factory WarrantyYesYesYesYesYesYes

The Master Difference

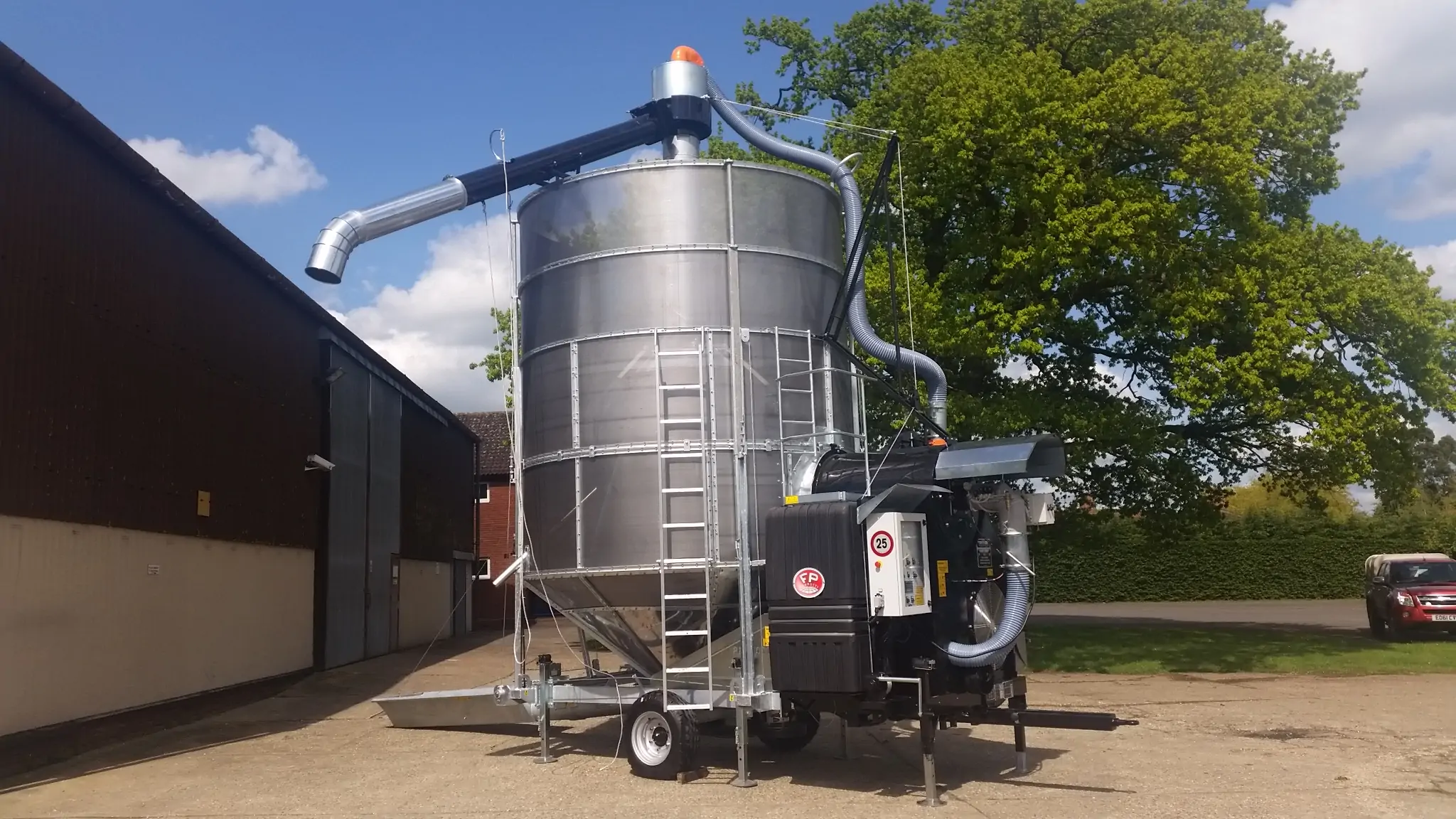

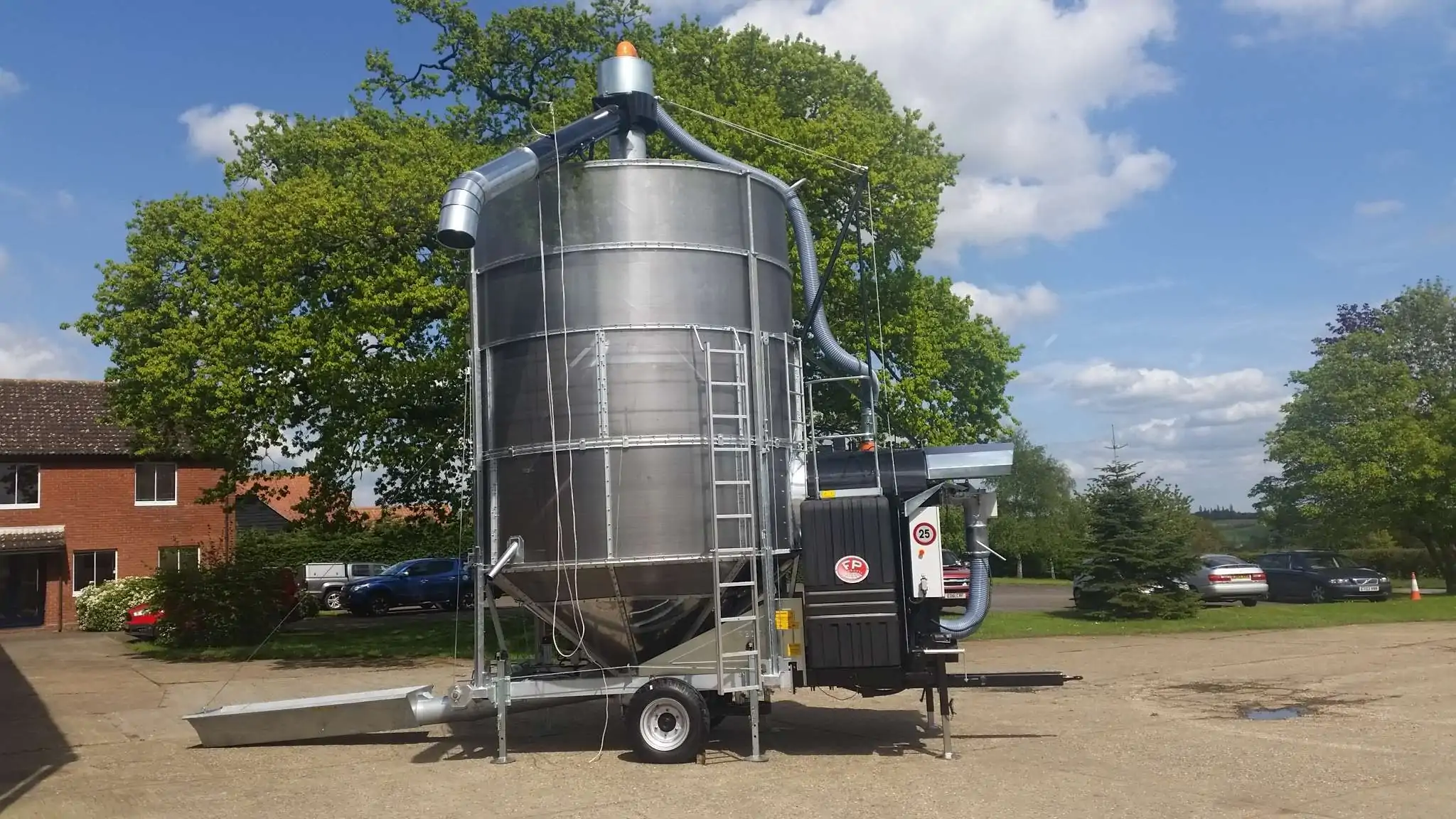

Model Shown: 20 Ton R/S - MRM
Please contact us for more details

1

Fast Loading Auger

Standard on all models from 18 tons and upwards is our 250mm filling auger (rated at 90tons/hr), giving some of the fastest fill times available on any batch drier. Along with the class leading fill times we are the only batch drier to have an intermediate bearing in the filling auger through.  The bearing reduces both wear on the auger by avoiding contact between the auger and tube sections as well as reducing noise should the filling auger run empty during the filling process.

2

Pedrotti Master Dust Extraction

Being the first mobile drier manufacturer to bring dust extraction to the UK market in the mid nineties we have led the way from the start and still feel we are leading the way in terms of efficiency and quality of sample achieved.  Don’t take our word for it speak to one of the 1500 farmers operating a Pedrotti Master Drier with dust extraction in the UK.

It works by removing add mixture and other impurities from the crop pushing bushel weights higher, adding financial value. Along with the financial benefits the system also provides a cleaner and safer environment around the drier, as well as keeping your farm yard a tidier and more pleasant place to work during a busy harvest period.



3

350mm or 450mm Special Central Augers

All models in this range come with either our standard 350mm (80 tons/hr) or 450mm (120tons/hr).  Built around the longest experience of mobile dryers operating in the UK market the augers and tubes we use today are the best yet. Using the latest in flight design and steel technology all or latest driers come with Hardox Steel wear zones as well as the highest quality hard steels for the rest of the auger. The Auger tubes are 5mm overall thickness made up of 4mm of C430 carbon steel and 1mm of Zinc galvanizing giving a long working life.

4

Pedrotti Triple Stage Modulating Burner

The  Triple  Stage “modulating burner” operation under the control of a PLC unit enables the burner to work from minimum to maximum delivery fully automatically until the set temperature is reached.  This function also allows the burner to reach and maintain its set point more efficiently saving fuel, time and money, giving our system some great advantages over traditional cheaper modular burners.

Another great advantage of this new system is that it makes it possible for the operator to use the dryer with different products requiring varying and very different drying temperatures, without needing to replace the burner nozzles.

5

Mastermatic Automation

Featuring touch screen control as standard getting rid of most of the old fashioned mechanical push buttons and timers which generally give problems as the cumulative effects of dust, damp and time take there effects.

This easy to use system comes as standard with the following featues:

  • Pre-progammed individual crop settings with last setting memory
  • Early start-up of fan and burner when filling
  • Auto top-up facilty
  • Cooling by time or temperature
  • Batch selection control
  • Options for the control of filling and emptying conveyor
6

Automatic Lubrication

The Automatic Lubrication system is controlled through the driers PLC system and individual dosing units so every bearing on the machine gets the correct amount of grease at the correct intervals. The system also comes with the added protection of a fail safe alarm sensor so if you have forgotten to fill the greaser you will know about it. Filled though a normal grease nipple or with an optional quick fill grease gun available to purchase from Master Farm.

7

Gravity Cleaner Fan

An increasingly popular option on our mastermatic machines along side the dust extraction system so that all the cleanings and waste materials end up in one place. The fan is mounted directly to the gravity cleaner pipe blowing the material from the gravity cleaner to the same waste collection area as the dust extraction fan, keeping the area around the drier much cleaner and tidier

8

Heat Saving Combustion Chamber Funnels

Pedrotti Master Driers use special designed stainless steel combustion chamber funnels to ensure that each calorie produced by the burners goes directly inside the crop, without any heat waste. Using triple layer cool wall technology the air coming from the fan divides in three different flow lines, producing a natural isolation of each internal chamber funnel.

Unique to our dryers the outside of the funnel remains always cold, and the user can touch it with bare hands without  any burns. No heat dispersion means fuel/cost saving

9

Mastervac Hoover Kit

Another Pedrotti Master Drier first in the field technology.  We all know operating a drier can be dusty and dangerous work especially when it  collects on the floor area around the drier.  The Master Hoover Kit will collect all dry dust and debris from around the drier, operating in conjuction with the dust extraction will direct to a collection point away from the drier

10

Ultra-strong Toothed Gears and Agitators with DLC

Pedrotti Master Driers utilize ultra-strong internal gears and agitators to resist the extreme strain produced by high levels of moisture within the crop. As an additional safety feature, all our driers are equipped with a Drive Line Control safety system(DLC for short).  This system is there so if the worse does happen and the agitators or the center auger have a problem the burner will turn off preventing overheating.

11

Icorene® Tanks

Pedrotti Master Driers use special 100% ICORENE® 1613 BK85 tanks. This premium quality black powder is used in the production of diesel fuel tanks on tractors, harvesters, trucks, buses and many more vehicle types.

This material reduces the risks of fuel explosion in accordance with CE legislation, furthermore ICORENE® grants the absence of condensation in the tanks during the colder months and therefore protecting the pureness and cleanliness of your fuel.

12

Full Hot-dip Galvanization

Unique to Pedrotti Master Driers the fully galvanized rear chassis (Not just some token parts) incorporating the entire frame, front triangular section and plenum chamber (standard on Super 120 R/S)

The complete galvanization process is done with a full immersion of the frame in a bath of molten zinc at a temperature of around 840 °F (449 °C).

The galvanizing protects the steel by acting as a barrier between the steel and the atmosphere, keeping your machine protected even in the most extreme conditions.

13

Master Care Package

All new Pedrotti Master Driers now come with a 3 Year Fully Comprehensive Warranty as standard. We want to share with you our confidence both in the services we provide and the products we sell,  something no other drier manufacturer offers.

Optional Features


Dust Extraction System

The dust extraction system working along side the standard gravity cleaner serves a number of purposes. Removing add mixture and other impurities from the crop pushes bushel weights higher, adding financial value. Along with the financial benefits the system also provides a cleaner and safer environment around the drier, as well as keeping your farm yard a tidier and more pleasant place to work during a busy harvest period.

Factory fitted incorporating a large capacity fan, suction hose, suction control valve, small gravity cleaner cyclone and 10m of discharge hose.



Lubrication Systems

The Automatic Lubrication system is controlled through the driers PLC system and individual dosing units so every bearing on the machine gets the correct amount of grease at the correct intervals. The system also comes with the added protection of a fail safe alarm sensor so if you have forgotten to fill the greaser you will know about it. Filled though a normal grease nipple or with an optional quick fill grease gun.



Hydraulic Operation Systems

Option 1

Perfect for the contractor or individual operating at multiple sites, hydraulically operated screens and top auger via wireless remote.

At the touch of a button you can raise/lower your top auger as well as your screens vastly reducing the amount of time and effort required to get your machine up and running or moving on to its next job.(The system requires one tractor spool as well as a 7pin trailer socket)

Option 2

Hydraulic operation of the top auger only via tractor spool valve.

This option is standard on some models due to size/weight of the top auger.



Discharge Alternatives

There are a number of other discharge options available to meet with existing height and/or farm building restrictions.  Single or twin fixed discharge chutes through screen with motorised flaps available where height maybe an issue, or horizontal motor driven cross auger discharge.  Lengths and heights can be tailored to suit individual requirements.

Remote Unload Chute

Allows you to operate the unload chute from the comfort of your tractor cab.  Especially useful on larger capacity driers when emptying into trailers.

Long-life Augers & Tubes

The latest Master Driers utilise advancements in steel technology by using hardox wear zones, making them durable and longer life.
